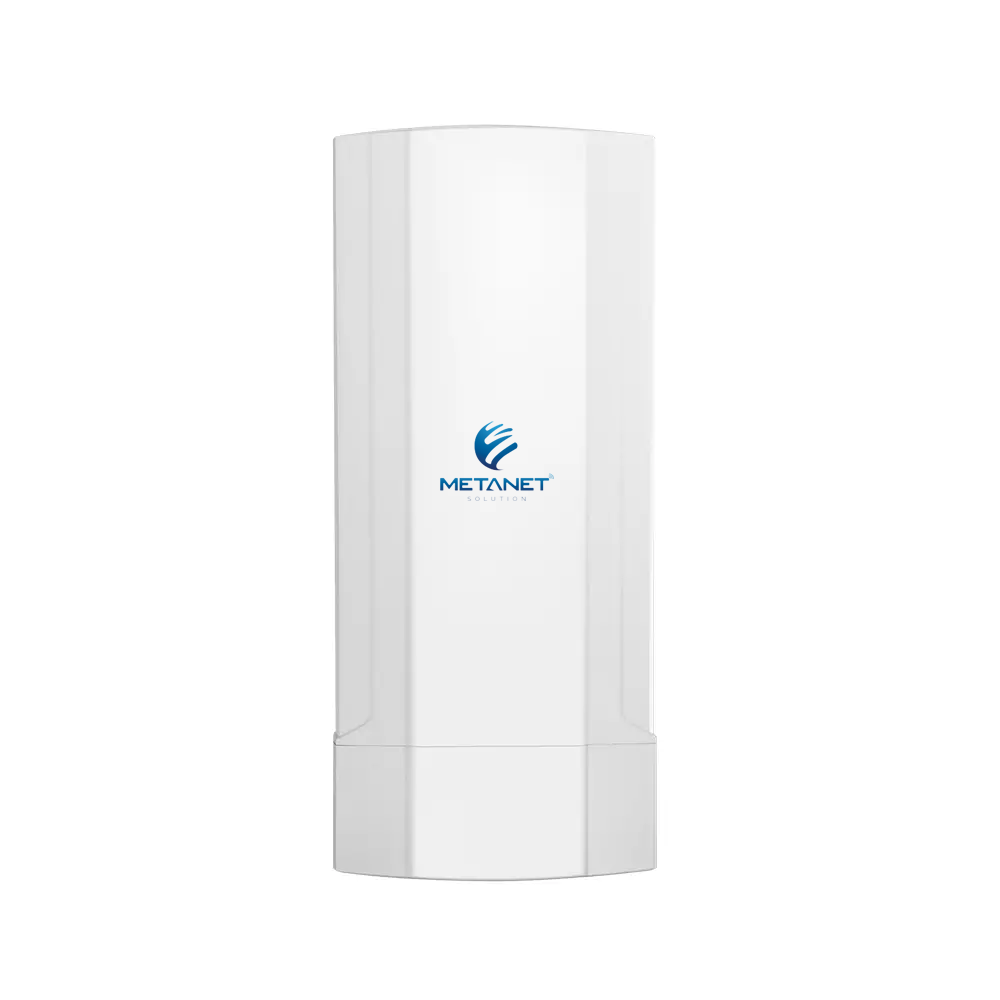

Metanet OD AirP 750

Description:

Metanet OD AirP 750 is an Qualcomm Solution 11ac high power industrial use Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, combined 750Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(450Mbps), fast Ethernet data rate make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

ABS weather-proof case

AP750 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.

High Power, 5dBi omni antenna, more WiFi Range

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in omni 5dBi antenna, outdoor WiFi range up to 500 meters.

Power over Ethernet

AP750 has integrated Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 24V Passive PoE; 48V IEEE 802.3af active PoE is optional by extra price.

Access Controller System & Cloud Management System

Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.

Main Features:

• Comply with IEEE 802.11ac/b/g/n, dual band, 750Mbps Data Rate.
• 1*10/100Mbps WANPort，1*10/100Mbps LAN Port.
• 500mW high power, Qualcomm Chipset, 16M Flash, 128M DDR2 RAM, more user, more stable.
• Support 24V Passive PoE, with 24V/1A PoE adapter.
• Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety.
• Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode.
• With function of firewall, IP filter, URL filter and MAC filter.
• Comply with IEEE 802.3az standard,RF power adjustment and frequency analyzer for better application in different environment.
• Support DDNS, VPN pass through, Port forwarding and DMZ host.
• Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security.
