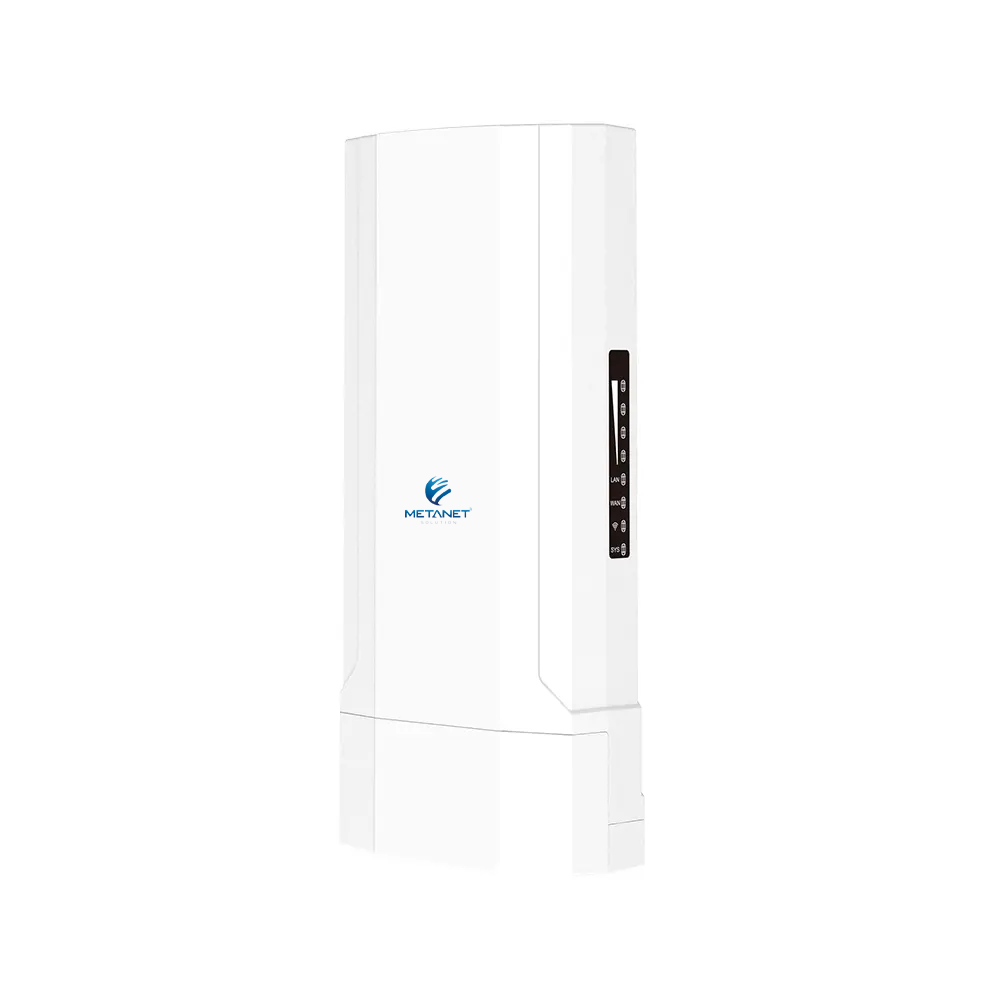

Metanet OD AirM 1200

Description:

Metanet OD AirM 1200 is the 1200Mbps high power industrial use Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, support 2x2 MU-MIMO technology, it is dual band, 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

ABS weather-proof case

Metanet OD AirM 1200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the maximum working temperature can be at -40℃ to 55℃. Suit for any country.

High Power, 5dBi omni antenna, more Wi-Fi Range

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, build in 5dBi omni Wi-Fi antenna, outdoor Wi-Fi range up to 100 meters.

Power over Ethernet

Metanet OD AirM 1200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.

MU-MIMO, Wave2.0 Technology

Comply with Wave2.0 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), greatly to improved the communication efficiency.

Beamfrorming, DFS, Airtime Fairness, Band Steering, OFDM support

Metanet OD AirM 1200 support many functions like Beamfrorming, DFS(Dynamic Frequency Selection), Airtime Fairness, Band Steering ( 5G Prior), OFDM(Orthogonal Frequency Division Multiplexing), RF Power adjustable to improve the performance and Wi-Fi stability.

Access Controller System & Cloud Management System

Work with WLAN controller in wireless AP operation mode,easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.

Main Features:

• Professional outdoor shell design,IP65 dust proof/water proof level. Adopt ABS outdoor engineering plastic shell and industrial components,to provide IP65 level water proof ,dust proof and lightning protection,adapt to wind,sun,thunderstorm,snow and freeze or other adverse environments,even in extreme high and low temperature(-40℃ -  +70℃)environment,can work normally and steadily as well .
• With Qualcomm QCA9563 chipset , Flash16MB .DDR  128MB, greatly improved the data processing performance and allow more end users access.
• Independent external power amplifier circuit and low noise amplifier receiving circuit design.
• Long wireless coverage ,transfer all kinds of data smoothly ,do not have any latency. AP1200 W2  is a high power  outdoor base station with 160 meters wireless range ,can meet the demands for outdoor wifi project large area coverage , specialize in high power design ,can ensure strong wireless signal and stable performance .
• Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
• RF power is adjustable according to the actual use environment .Reduce mutual WIFI interference between each other to improve wireless stability.
• Multiple operation mode to meet the different wireless solutions.
